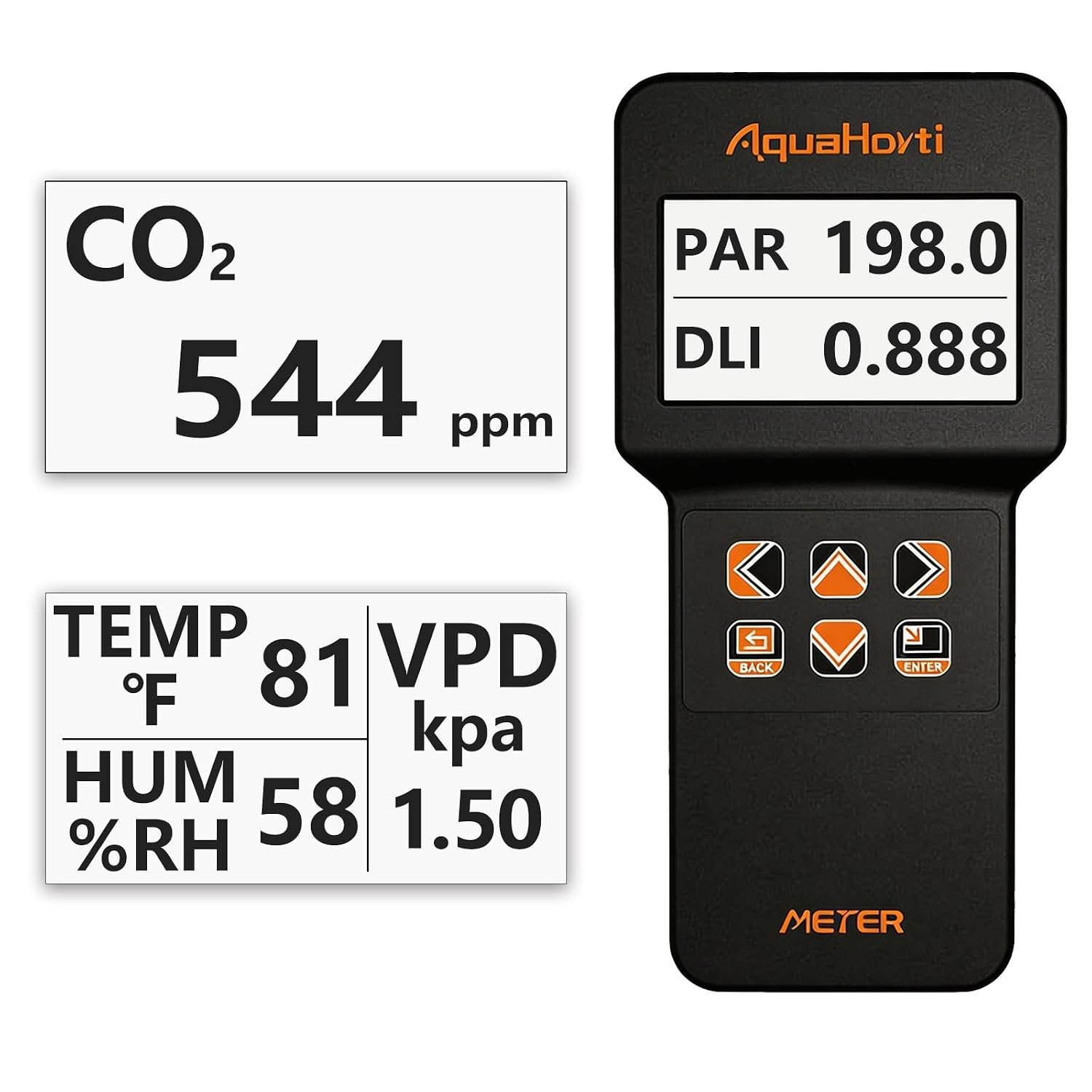

See How Light, CO₂ & Plant Climate Change Together Over Time.

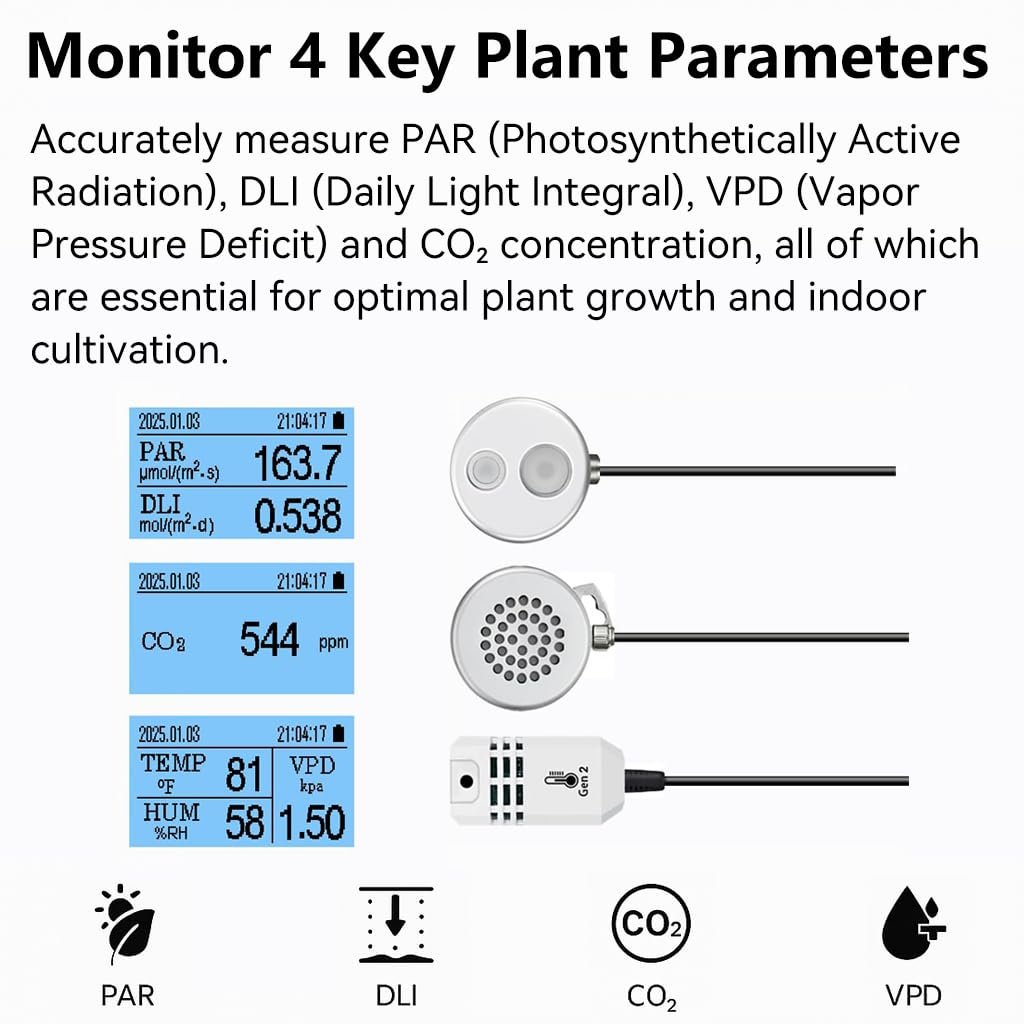

AH-200 monitors PAR / PPFD, DLI, CO₂, temperature, humidity and VPD in one system. Record the growing environment over time, review real-time and historical trends on a PC, and export CSV data by USB — no Wi-Fi or app required.
See light, CO₂ and plant climate on the same monitoring timeline.
PAR / PPFD, DLI, CO₂, temperature, humidity and VPD change through the day. AH-200 brings these measurements into one monitoring system so growers can compare when conditions change instead of relying on isolated spot readings.
Record more than a single moment.

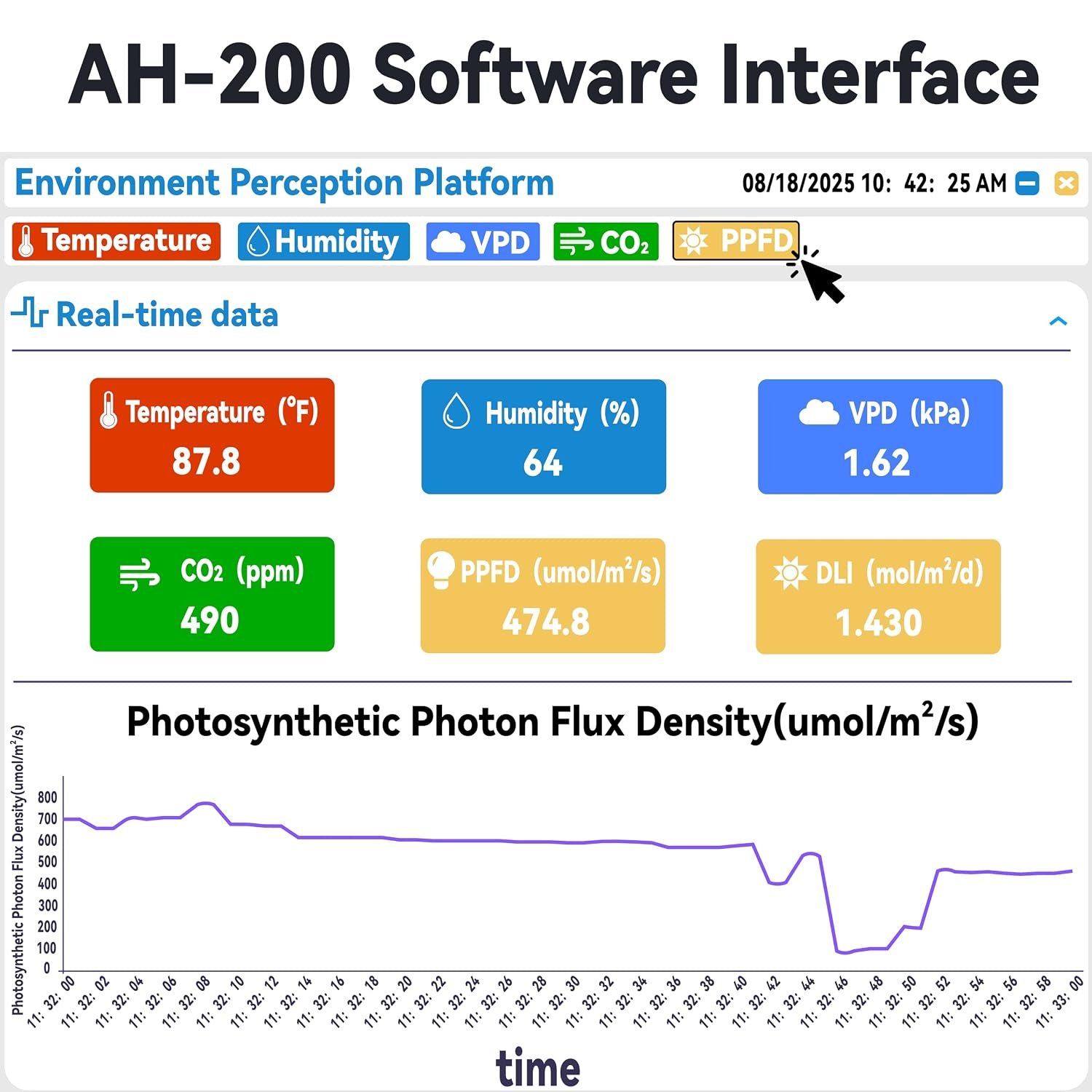

View real-time and historical data on your computer. Export CSV files by USB for comparison, reporting and longer-term analysis. No Wi-Fi or app is required.

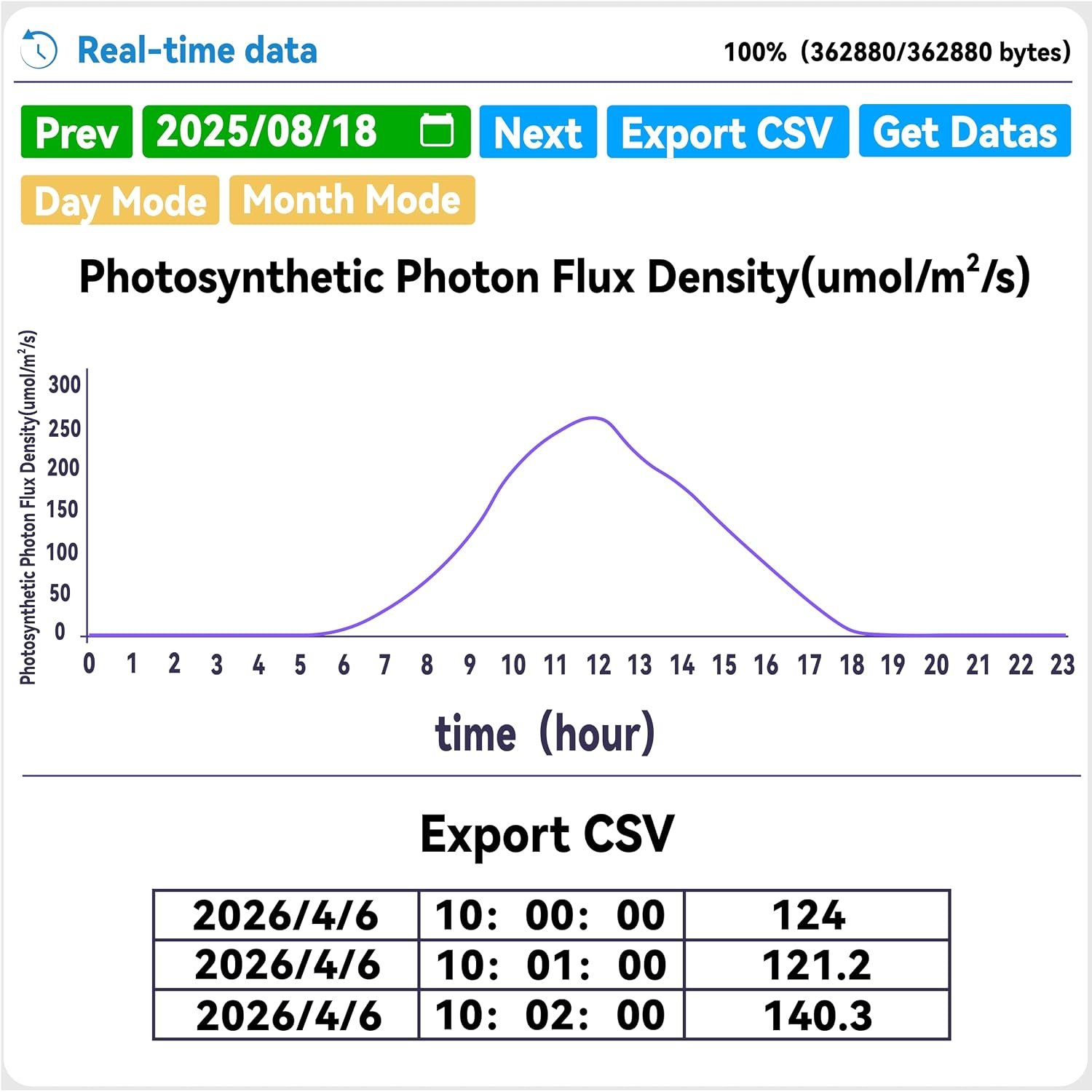

Turn recorded data into visible trends.
A single reading tells you what is happening now. Recorded data helps you see what happened before, when conditions changed, and how the growing environment developed over time.

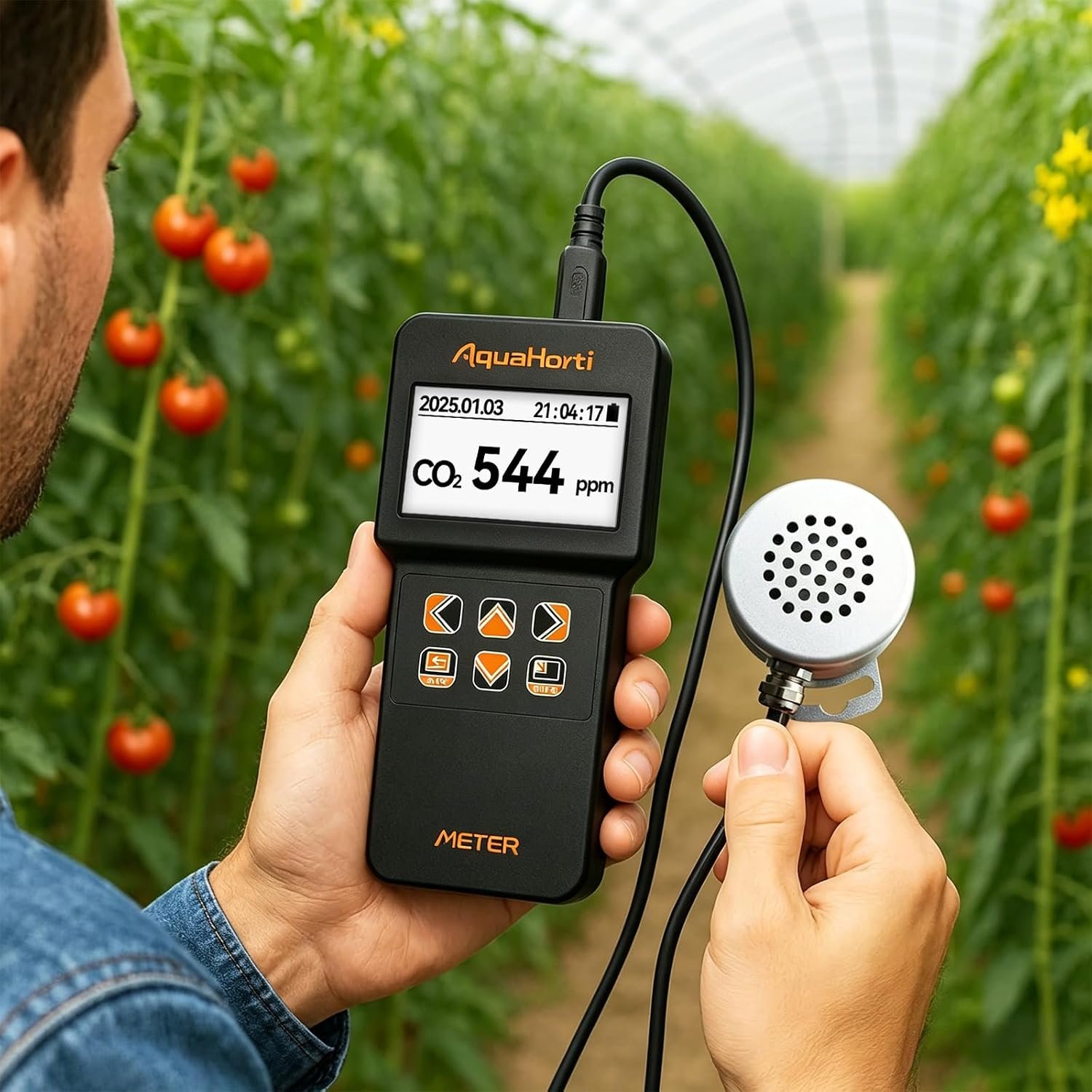

See CO₂ where the crop actually grows.
Measure CO₂ inside the growing area instead of relying only on room-level assumptions. This helps growers understand ventilation, enrichment and daily greenhouse conditions.

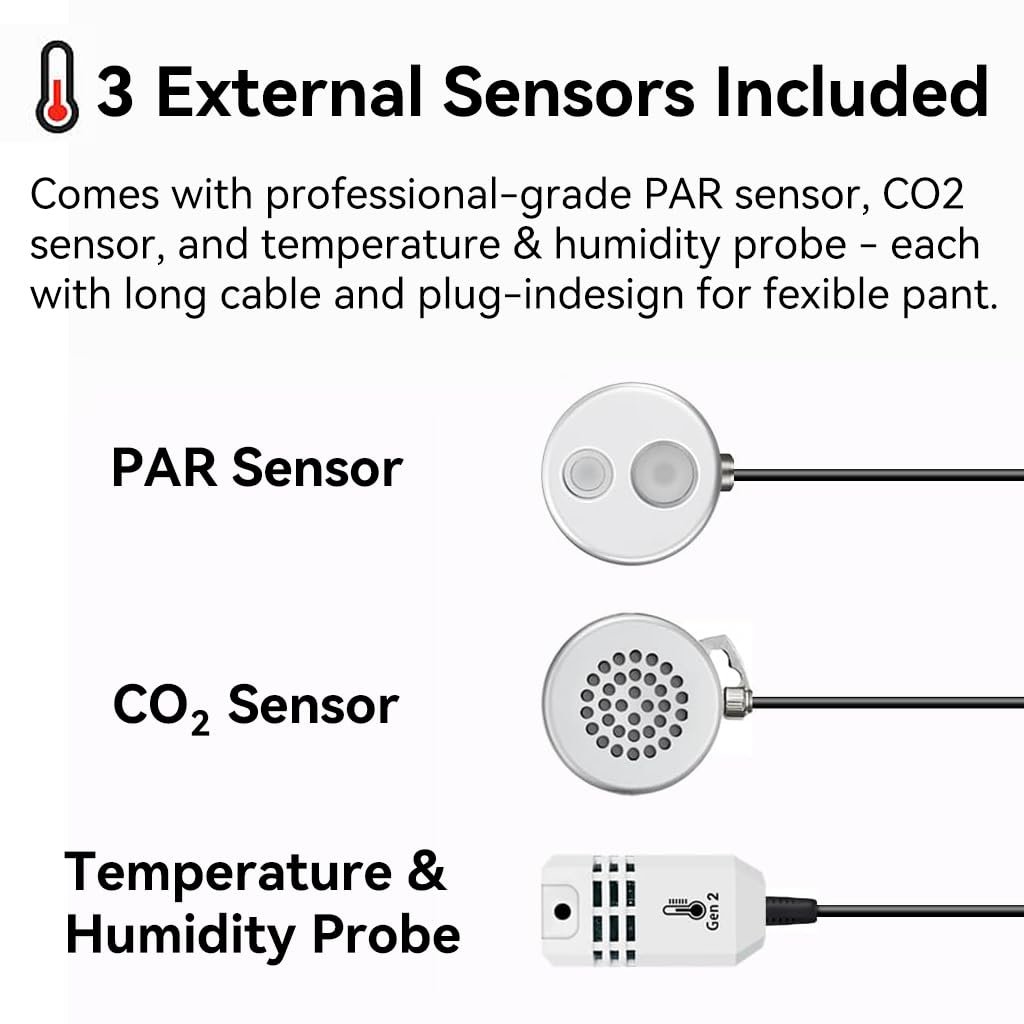

Three external sensors. Flexible placement.
Position the PAR, CO₂, and temperature & humidity sensors where the plants actually are, instead of measuring only at the main unit.
Designed for growers and researchers.
Use AH-200 in greenhouses, grow tents, hydroponic systems and controlled-environment agriculture to understand light, air and plant climate.

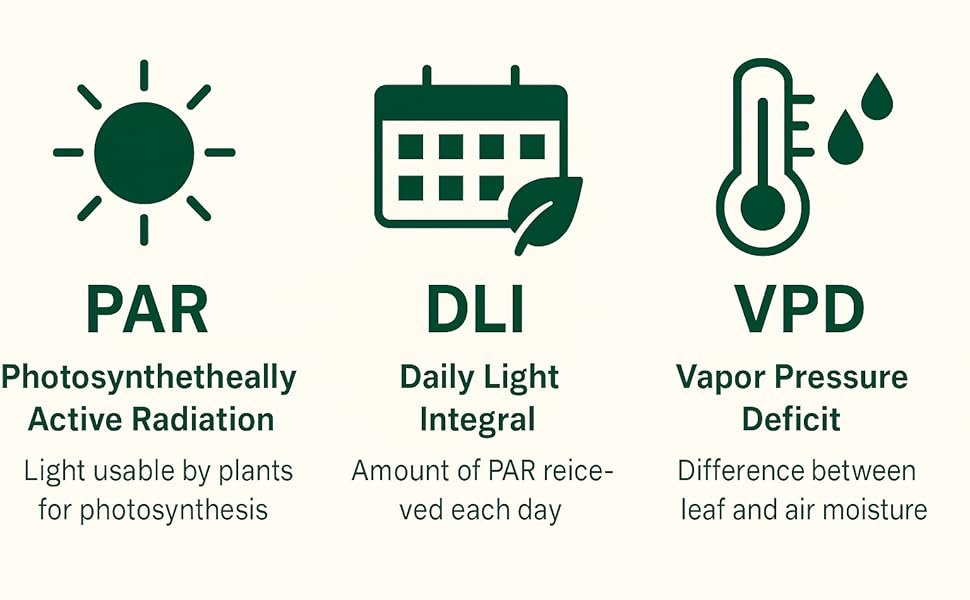

Understand the numbers that matter.
PAR shows usable light now. DLI shows accumulated usable light through the day. VPD combines temperature and humidity into a practical indicator of the plant-air moisture relationship.

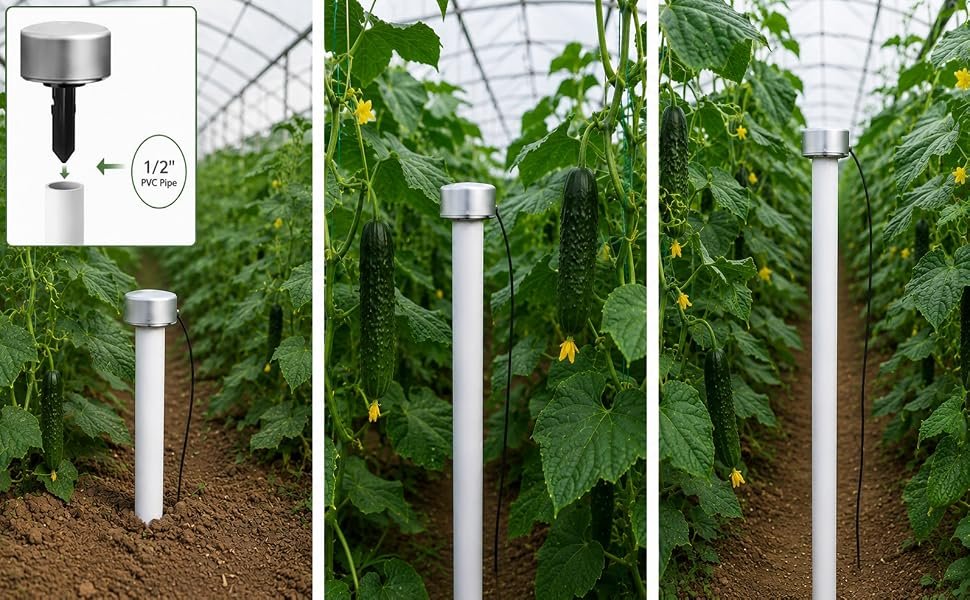

Adjust Sensor Height as Plants Grow
The mounting design fits standard 1/2-inch PVC pipe, making it easy to position the sensor near the crop canopy as plant height changes.
See AH-200 used for a complete 24-hour PAR, DLI, CO₂ and VPD test.
On October 8, 2026, AquaHorti placed an AH-200 outdoors and recorded PPFD, temperature, relative humidity, VPD and CO₂ continuously from 00:00 to 23:59. The one-minute interval and 1,440 timestamps below describe this specific published test setup, not a fixed AH-200 product logging specification.
- Test date: October 8, 2026
- Environment: outdoor, one measurement position
- Test interval: 1 minute
- Total timestamps in this test: 1,440
- Variables on the same timeline: PPFD, temperature, RH, VPD and CO₂
- Peak PPFD: 1,041.8 µmol/m²/s
- Calculated DLI: ≈17.1 mol/m²/day
- Temperature: 21–37 °C · RH: 37–85%
- VPD: 0.37–3.95 kPa
- CO₂: 436–519 ppm
Important: these are measured values from one outdoor day at one position. They are not universal crop targets, and the one-minute interval is a setting used in this published test rather than a product specification stated on this page.
AH-200 data-logging FAQ
Keep the published test settings separate from the AH-200 product specifications.
Is there a real-world AH-200 data-logging test?
Yes. AquaHorti published a 24-hour outdoor AH-200 test from October 8, 2026, with PPFD, temperature, relative humidity, VPD and CO₂ recorded on the same timeline.
Does AH-200 always log every minute?
The published October 8 test used a one-minute interval and contained 1,440 timestamps. That describes the test setup. This product page does not state that one minute is the fixed logging interval for every AH-200 use.
Are the measured 24-hour values recommended crop targets?
No. They are observations from one outdoor day at one position. Appropriate PPFD, DLI, CO₂, temperature, humidity and VPD targets depend on crop, growth stage and growing system.
Why is the 24-hour test useful?
It shows why the AH-200 measurement workflow is about relationships over time: a single PPFD reading cannot show the full-day DLI or what temperature, humidity, VPD and CO₂ were doing at the same time.
Monitor the whole grow environment — then understand the trend.
AH-200 combines plant-light measurement, DLI, CO₂, temperature, humidity, VPD and USB data logging so growers can review how the environment changes over time.
